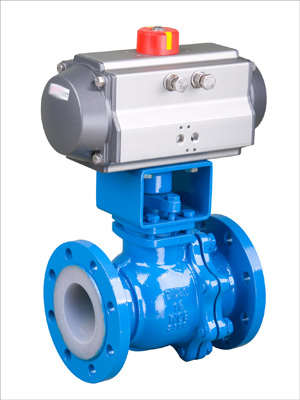

Pneumatic fluorine lined flange ball valve Q641F4, Q641F46

$0
Click：

气动衬四氟法兰球阀 Q641FS Features:The fluor-lined pneumatic ball valve features a flu...



气动衬四氟法兰球阀 Q641FS


   气动衬四氟法兰球阀



Features:

The fluor-lined pneumatic ball valve features a fluoroplastic-lined valve body combined with an innovative stem-integrated ball design and a unique elastic lip-seal seat structure. This configuration retains all the advantages of standard ball valves while delivering superior sealing performance under high pressure differentials and wide temperature fluctuations, along with low operating torque. Suitable for both on/off and regulating applications, this valve is ideal for handling liquids and gases (including steam) in industrial pipelines, demonstrating excellent resistance to strongly corrosive media such as acids, alkalis, and salts. The full-bore design ensures maximum flow capacity and supports pipeline purging, cleaning, or isolation.


Operating Temperature: -80°C to 200°C

Standards Compliance:


Design Standard: GB/12237


Face-to-Face Dimensions: GB/12221


Flange Standard: GB/113.1-26


Inspection Standard: JB/T 9092-99


Main Components & Materials:

The valve body of the fluor-lined pneumatic ball valve is lined with fluoroplastic, paired with an advanced stem-integrated ball structure and a proprietary elastic lip-seal seat. This combination ensures the valve's high sealing integrity even under extreme pressure and temperature variations, with minimal operating torque. It functions reliably for isolation or flow control in pipelines transporting liquids, gases (e.g., steam), and highly corrosive fluids (acids, alkalis, salts). The full-bore construction optimizes flow efficiency and facilitates pipeline maintenance or segregated flow routing.


Standards:


Temperature Range: -80°C to 200°C


Design: GB/12237


Structural Length: GB/12221


Flanges: GB/113.1-26


Testing: JB/T 9092-99


Key Advantages:


Corrosion Resistance: Fluoroplastic lining withstands aggressive chemicals.


Bidirectional Sealing: Reliable performance in high ΔP and thermal cycles.


Low Torque Operation: Energy-efficient actuation.


Versatility: Full-bore design for unrestricted flow or pigging.


Compliance: Meets stringent Chinese industrial standards.


Note: Ideal for chemical, petrochemical, and HVAC systems requiring leak-proof fluid control.


阀体主要零件及材料


零件名称材 料
左右阀体铸钢、不锈钢、内衬F46、F3
带杆球芯铸钢、不锈钢、内衬F46、F3
填料箱铸钢、不锈钢、内衬F46、F3
密封圈F4、F46
填料F4、F46



气动执行器主要技术参数


气动执行器型号QW系列、AT系列
气源压力0.4 ～ 0.8 MPa
最大回转角度90°～92°
回信器AC220V AC110V DC24V
控制信号电信号：0～0Ma 4 ～20Ma 气信号：0.02 ～0.1 MPa
控制气源洁净、干燥压缩空气
工作温度-20℃ ～ +90℃



气动执行器主要部件材料


零件名称缸体端盖活塞轴O型圈指示轴螺栓
QW系列AT系列铝合金型材（硬质阳极氧化）压铸铝合金（环氧树脂喷涂）压铸铝钢（镀镍磷合金）NBRABCSUS304


附件的选项

根据不同控制和要求可选择下列附件：
切断型附件：单电控电磁阀、双电控电磁阀、限位开关回讯器。
调节型附件：电气定位器、气动定位器、电气转换器。
气源处理附件：空气过滤减压阀、气源处理三联件。
手动机构：手操机构
