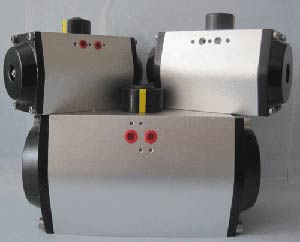

GT pneumatic actuator

$0
Click：

GT pneumatic actuator...

性能、结构和设计特点



● 挤压铝质(ASTM6005)缸体，内表面细磨精加工，内部和外部均采用高级防腐技术，气缸摩擦系数小，使用寿命长，抗腐蚀性能强。
● 双活塞齿轮齿条式设计，结构紧凑、安装位置对称、改变输出轴转向方便，使用寿命长、动作迅速。活塞齿条背面装有复合轴承及导向环，动作**、摩擦系数小、使用寿命延长。
● 组合式预负荷镀层弹簧，工作寿命长。
● 高精度齿轮和齿条，啮合间隙小、精度高，输出功率大。
● 不锈钢紧固件,安全美观，抗腐蚀性强。
● 采用国际规范尺寸:输出轴槽、螺孔;顶部安装孔尺寸符合NAMUR标准;气源接口尺寸符合NAMUR标准;底部安装孔尺寸符合IS05211、DIN3337标准，方便安装电磁阀限位开关等附件。
 Design & Constructin of BAILEFU Pneumatic Actuators

气动执行器结构
Construction of Pneumatic Actuator

● Extruded aluminum ASTM6005 body with bath internal and external corrosion protection having honed cylinder surface for longer life and low coefficient of friction.
● Dual piston rack and pinion design for compact construction, symmetric mounting position, high-cycle fife and fast operation, reverse rotation can be accomplished in the field by simply inverting the pistons.
● Multiple bearings and guides on racks and pistons, low friction, high cycle life and prevent shaft blowout.
● Modular preloaded spring cartridge design, with coatedspring for simple versatile range, greater safely and corrosion resistance, longer cycle life.
● Fully machined teeth on piston and pinion for accurate low backlash rack and pinion 　　engagement, maximum efficlency. Stalnless steel fasteners for long term corroslon resistance
● Full conformance to the latest specifications: IS05211,DIN 3337 and Namur or product inter changeahility and easy mounting of solenoids, limit switches and other aocessodes.







顶部连接尺寸符合VDI/VDE3845NAMUR标准，易于安装限位开关和定位器等附件
Connection dimensions of the top conform to standard VDI/VDE3845 NAMUR，convenient to install limit switch and localizer.

侧面连接尺寸符合VDI/VDE3845 NAMUR标准，适于安装电磁阀.
Connection dimensions of the side conform to standard VDI/VDE 3845 NAMUR，fit for installing solenoid valve.
底部连接尺寸符合IS05211和DIN3337标准，可直接和阀门连接星型和方型孔便于各种阀门的直接连接。
Connection dimensions of the bottom conform to standards 1S05211 and DIN3337 and can connect with valve directly.
Star and enient to rectangular holes are conv-connect with valves directly.




特殊行程
工作技术条件 Operating conditions
工作技术条件：
1.使用介质：压缩空气、无腐蚀性气体和油;
2.压力范围：双作用2-8(Bar)，单作用2-8巴(Bar)
3.工作温度：标准型(使用丁睛橡胶0型圈)-20℃-- +80℃
低温型(使用硅橡胶0型圈)-40℃-- +80℃
高温型(使用橄橡胶0型圈)-20℃-- +150℃
4.行程调整：在90°位里有土4°的可调范围;
5.润滑：在正常工作条件下，不需添加润滑剂;
6.安装：适合室内或室外安装;
7.**高使用压力：输入气压不超过8巴。
Operating conditions：
1 . Operating media
Dry or lubricated air, the non-corrosive gases or oil.
2. Air supply pressure
Double acting： 2-8 Bar; Spring return: 2-8 Bar
3. Operating temperature
Standard： -20 ℃ - +80 ℃
Low temperature： -40℃-- +80℃
High temperature： -20℃ +150℃
4. Travel adjustment
Have adjustment range of ±4° for the rotation at 90°
5. Lubrication
Under normal operating condition, need not accrete lubricant
6. Application
Either indoor or outdoor
7. Highest pressure
The maximum input pressure is 8 Bar
