Q611F Pneumatic Three-Piece Ball Valve Introduction

The Q611F Pneumatic Three-Piece Ball Valve and Butt-Weld Ball Valve are suitable for pipelines with a pressure rating of PN1.0–4.0 MPa and operating temperatures ranging from -29°C to 180°C (with reinforced PTFE seals) or -29°C to 300°C (with PPL seals). They are used to shut off or regulate media flow in pipelines. Depending on material selection, they can handle water, steam, oil, nitric acid, acetic acid, and various other media.

I. Features of Q611F Pneumatic Three-Piece Ball Valve

The pneumatic three-piece ball valve and butt-weld ball valve are available in one-piece (monoblock), two-piece, and three-piece designs.

The valve body is cast using advanced Taiwanese manufacturing techniques, ensuring optimal structure and aesthetic design.

Elastic sealing seat structure provides reliable sealing and smooth operation.

The bottom-mounted stem features a reverse-sealing design, preventing stem blowout in case of abnormal cavity pressure.

Two-piece and three-piece ball valves also offer butt-weld (BW) and socket-weld (SW) connections, with optional ISO-standard mounting pads and locking devices.

90° position limiting mechanism can be installed, along with lockable handles to prevent misoperation.

Drive options: Manual, electric, or pneumatic actuation.

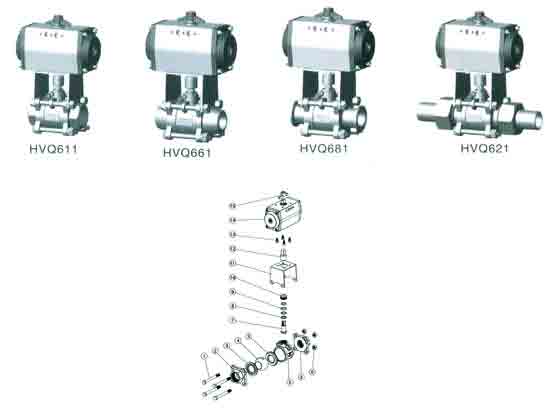

Pneumatic Three-Piece Ball Valve with Threaded, Welded, Clamp, or Tube-Weld Connections (Seat Types: F, N, P) – Pressure Range: PN16–64

This valve series ensures high durability, tight sealing, and flexible installation, making it ideal for industrial fluid control applications.

技术规范

※注：系列球阀结构长度及连接法兰尺寸可根据用户要求设计制造。

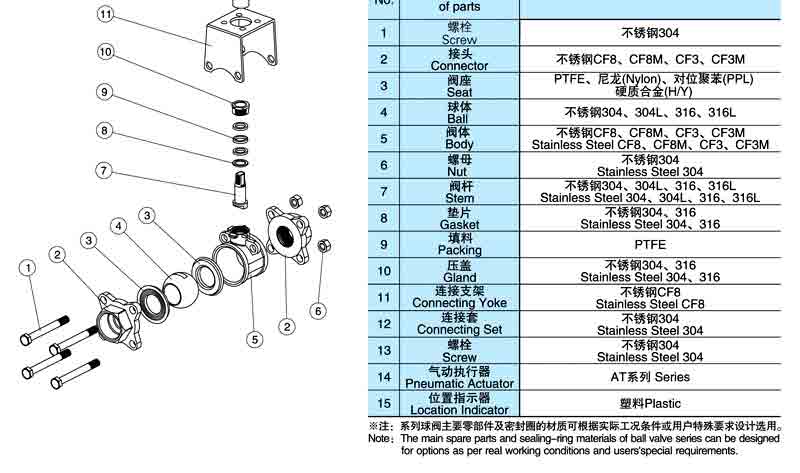

主要零件材质表

※系列球阀主要零部件及密封圈的材质可根据实际工况条件或用户特殊要求设计选用。

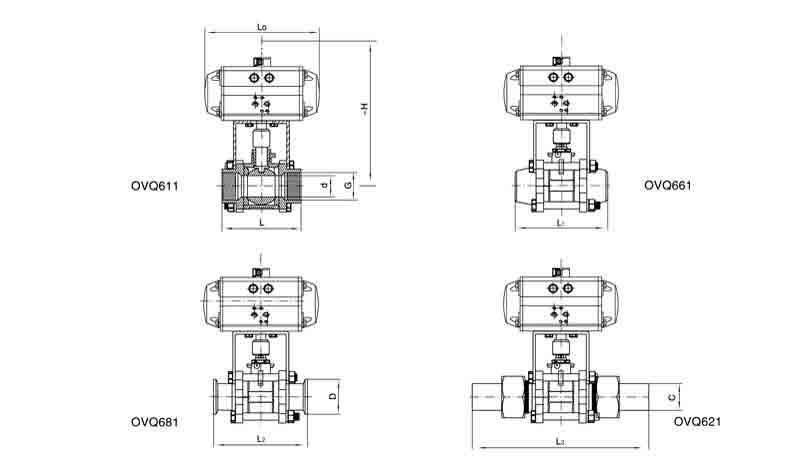

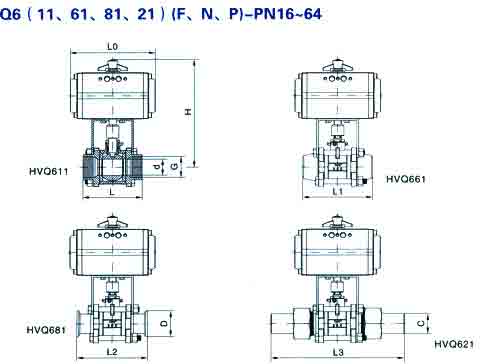

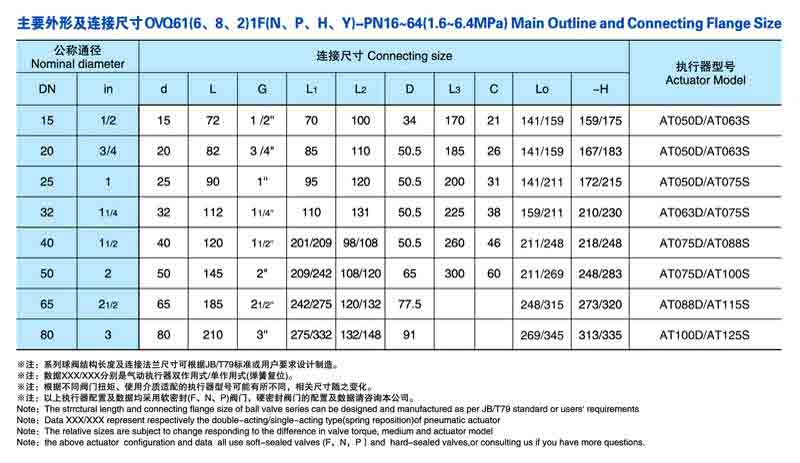

主要外形及连接尺寸 Q6(11、61、81、21)(F、N、P)-16-64

※洼：系列球阀结构长度及连接法兰尺寸可根据用户要求设计制造。

※注：数据 XXX/XXX分别是气动执行器双作用式/单作用式(弹簧复位)。※注：*根据不同阀门扭矩、使用介质适配的执行器型号可能有所不同，相关尺寸随之变化。
